Correa de distribución T5-PU

Maquinaria de oficina, Unidades de bricolaje, Accionamientos de posicionamiento y regulación

Estado de Disponibilidad:

Cantidad:



Preguntar

Descripción del producto

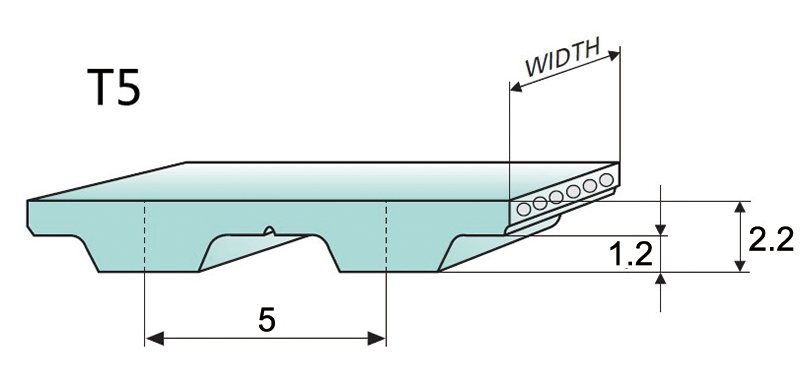

Parámetros técnicos T5

Transmisión de energía: ≤5KW
Velocidad de rotación: approx.10000RPM
Velocidad periférica: approx.80MS^-1
Poleas de distribución: de dientes = 10
Aplicaciones: maquinaria de oficina, unidades de bricolaje, accionamientos de posicionamiento y regulación

T5-correa de distribución de doble cara

Escribe	Dientes	Ancho	Longitud	Escribe	Dientes	Ancho	Longitud
T5 (Paso = 5 mm)				T5M (Paso = 5 mm)
T5-120	24	150	120.00	T5-415	83	150	415.00
T5-145	29	150	145.00	T5-420	84	150	420.00
T5-150	30	150	150.00	T5-425	85	150	425.00
T5-165	34	150	165.00	T5-430	86	150	430.00
T5-170	34	150	170.00	T5-435	87	150	435.00
T5-180	36	150	180.00	T5-440	88	150	440.00
T5-185	37	150	185.00	T5-445	89	150	445.00
T5-190	38	150	190.00	T5-450	90	150	450.00
T5-200	40	150	200.00	T5-455	91	150	455.00
T5-210	42	150	210.00	T5-460	92	150	460.00
T5-215	43	150	215.00	T5-465	93	150	465.00
T5-220	44	150	220.00	T5-470	94	150	470.00
T5-225	45	150	225.00	T5-475	95	150	475.00
T5-240	48	150	240.00	T5-480	96	150	480.00
T5-245	49	150	245.00	T5-490	98	150	490.00
T5-250	50	150	250.00	T5-500	100	150	500.00
T5-255	51	150	255.00	T5-510	102	150	510.00
T5-260	52	150	260.00	T5-515	103	150	515.00
T5-270	54	150	270.00	T5-525	105	150	525.00
T5-275	55	150	275.00	T5-530	106	150	530.00
T5-280	56	150	280.00	T5-545	109	150	545.00
T5-285	57	150	285.00	T5-550	110	150	550.00
T5-295	59	150	295.00	T5-560	112	150	560.00
T5-300	60	150	300.00	T5-575	115	150	575.00
T5-305	61	150	305.00	15-590	118	150	590.00
T5-320	64	150	320.00	T5-600	120	150	600.00
T5-325	65	150	325.00	T5-605	121	150	605.00
T5-330	66	150	330.00	T5-610	122	150	610.00
T5-335	67	150	335.00	T5-615	123	150	615.00
T5-340	68	150	340.00	T5-620	124	150	620.00
T5-345	69	150	345.00	T5-625	125	150	625.00
T5-350	70	150	350.00	T5-630	126	150	630.00
T5-355	71	150	355.00	T5-635	127	150	635.00
T5-360	72	150	360.00	T5-640	128	150	640.00
T5-365	73	150	365.00	T5-645	129	150	645.00
T5-370	74	150	370.00	T5-650	130	150	650.00
T5-375	75	150	375.00	T5-655	131	150	655.00
T5-380	76	150	380.00	T5-660	132	150	660.00
15-390	78	150	390.00	T5-670	134	150	670.00
T5-400	80	150	400.00	T5-675	135	150	675.00
T5-410	81	150	410.00	T5-685	137	150	685.00

Escribe	Dientes	Ancho	Longitud	Escribe	Dientes	Ancho	Longitud
T5M (Paso = 5 mm)				T5M (Paso = 5 mm)
T5-690	138	150	690.00	T5-1220	244	150	1220.00
T5-695	139	150	695.00	T5-1275	255	150	1275.00
T5-700	140	150	700.00	T5-1280	256	150	1280.00
T5-710	142	150	710.00	T5-1315	263	150	1315.00
T5-720	144	150	720.00	T5-1350	270	150	1350.00
T5-725	145	150	725.00	T5-1355	271	150	1355.00
T5-740	148	150	740.00	T5-1380	276	150	1380.00
T5-750	150	150	750.00	T5-1400	280	150	1400.00
T5-765	153	150	765.00	T5-1440	288	150	1440.00
T5-770	154	150	770.00	T5-1500	300	150	1500.00
T5-775	155	150	775.00	T5-1520	304	150	1520.00
T5-780	156	150	780.00	T5-1580	316	150	1580.00
T5-800	160	150	800.00	T5-1900	380	150	1900.00
T5-810	162	150	810.00	T5-1905	381	150	1905.00
T5-815	163	150	815.00	T5-1955	391	150	1955.00
T5-825	165	150	825.00	DT5-260	52	150	260.00
T5-830	166	150	830.00	DT5-300	60	150	300.00
T5-840	168	150	840.00	DT5-410	82	150	410.00
T5-850	170	150	850.00	DT5-460	92	150	460.00
T5-860	172	150	860.00	DT5-515	103	150	515.00
T5-875	175	150	870.00	DT5-525	105	150	525.00
Ts-885	177	150	885.00	DT5-550	110	150	550.00
T5-900	180	150	900.00	DT5-590	118	150	590.00
T5-915	183	150	915.00	DT5-620	124	150	620.00
T5-920	184	150	920.00	DT5-625	125	150	625.00
T5-940	188	150	940.00	DT5-650	130	150	650.00
T5-950	190	150	950.00	DT5-700	140	150	700.00
T5-960	192	150	960.00	DT5-750	150	150	750.00
T5-975	195	150	975.00	DT5-755	151	150	755.00
T5-990	198	150	990.00	DT5-775	155	150	775.00
T5-1000	200	150	1000.00	DT5-815	163	150	815.00
T5-1045	209	150	1045.00	DT5-850	170	150	850.00
T5-1075	215	150	1075.00	DT5-860	172	150	860.00
T5-1090	218	150	1090.00	DT5-900	180	150	900.00
T5-1100	220	150	1100.00	DT5-940	188	150	940.00
T5-1115	223	150	1115.00	DT5-1075	215	150	1075.00
T5-1140	228	150	1140.00	DT5-1100	220	150	1100.00
T5-1150	230	150	1150.00	DT5-1160	232	150	1160.00
T5-1160	232	150	1160.00	DT5-1325	265	150	1325.00
T5-1200	240	150	1200.00	DT5-1520	304	150	1520.00
T5-1215	243	150	1215.00

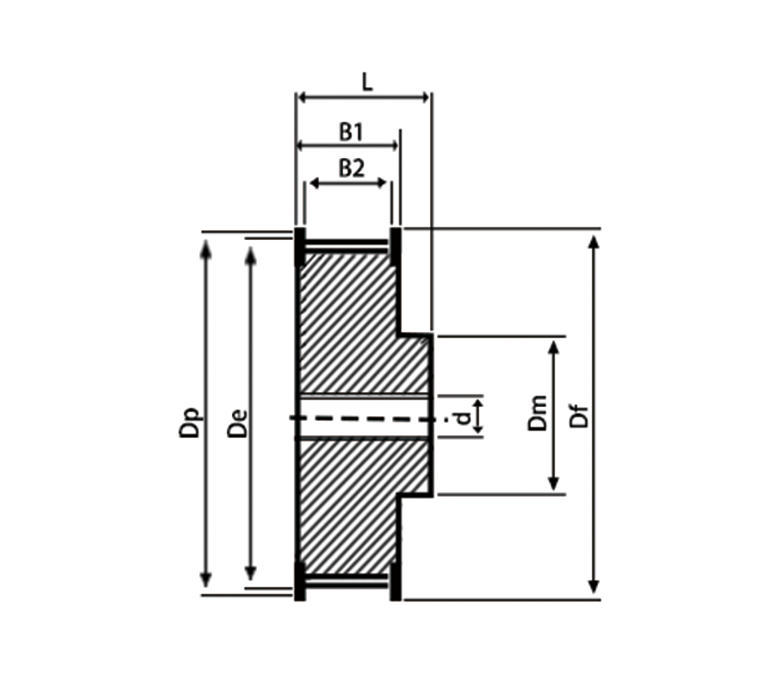

poleas

Sin dientes	Dp	Delaware	Sin dientes	Dp	Delaware
10	15.92	15.09	27	42.97	42.14
12	19.10	18.27	28	44.56	43.73
14	22.28	21.45	30	47.75	46.92
15	23.87	23.04	32	50.93	50.10
16	25.46	24.64	36	57.30	56.47
18	28.65	27.82	40	63.66	62.93
19	30.24	29.41	42	66.85	66.02
20	31.83	31.00	44	70.03	69.20
22	35.01	34.19	48	76.39	75.57
24	38.20	37.37	54	85.94	85.09
25	39.79	38.96	60	95.49	94.67
26	41.38	40.55
