Especializados en cintas transportadoras para ayudar a mantener su producción funcionando sin problemas.
 |
Parámetros técnicos AT5
Transmisión de potencia: ≤15KW
Velocidad de rotación: approx.10000RPM
Velocidad periférica: approx.80MS-1
Poleas de distribución: de dientes = 12
Aplicaciones: máquinas herramientas, bombas, maquinaria textil
| Escribe | Dientes | Ancho | Longitud | Escribe | Dientes | Ancho | Longitud |

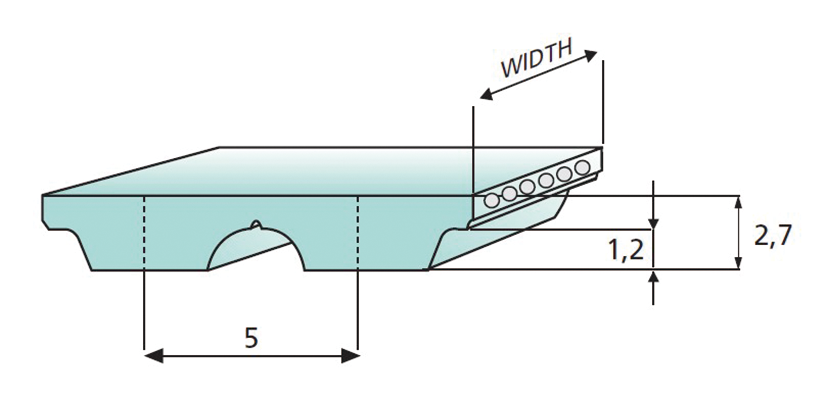

AT5 (paso = 5,00 mm) | AT5 (paso = 5,00 mm) | ||||||
AT5-225 | 45 | 150 | 225.00 | AT5-660 | 132 | 150 | 660.00 |
AT5-255 | 51 | 150 | 255.00 | AT5-665 | 133 | 150 | 665.00 |
AT5-275 | 55 | 150 | 275.00 | AT5-695 | 139 | 150 | 695.00 |
AT5-280 | 56 | 150 | 280.00 | AT5-710 | 142 | 150 | 710.00 |
AT5-300 | 60 | 150 | 300.00 | AT5-720 | 144 | 150 | 720.00 |
AT5-330 | 66 | 150 | 330.00 | AT5-750 | 150 | 150 | 750.00 |
AT5-335 | 67 | 150 | 335.00 | AT5-780 | 156 | 150 | 780.00 |
AT5-340 | 68 | 150 | 340.00 | AT5-825 | 165 | 150 | 825.00 |
AT5-375 | 75 | 150 | 375.00 | AT5-860 | 172 | 150 | 860.00 |
AT5-390 | 78 | 150 | 390.00 | AT5-890 | 178 | 150 | 890.00 |
AT5-420 | 84 | 150 | 420.00 | AT5-900 | 180 | 150 | 900.00 |
AT5-450 | 90 | 150 | 450.00 | AT5-950 | 190 | 150 | 950.00 |
AT5-455 | 91 | 150 | 455.00 | AT5-975 | 195 | 150 | 975.00 |
AT5-480 | 96 | 150 | 480.00 | AT5-1050 | 210 | 150 | 1050.00 |
AT5-500 | 100 | 150 | 500.00 | AT5-1075 | 215 | 150 | 1125.00 |
AT5-525 | 105 | 150 | 525.00 | AT5-1125 | 225 | 150 | 1075.00 |
AT5-545 | 109 | 150 | 545.00 | AT5-1380 | 276 | 150 | 1380.00 |
AT5-600 | 120 | 150 | 600.00 | AT5-1500 | 300 | 150 | 1500.00 |
AT5-610 | 122 | 150 | 610.00 | AT5-1520 | 304 | 150 | 1520.00 |
AT5-620 | 124 | 150 | 620.00 | AT5-1750 | 350 | 150 | 1750.00 |
AT5-630 | 126 | 150 | 630.00 | AT5-2000 | 400 | 150 | 2000.00 |

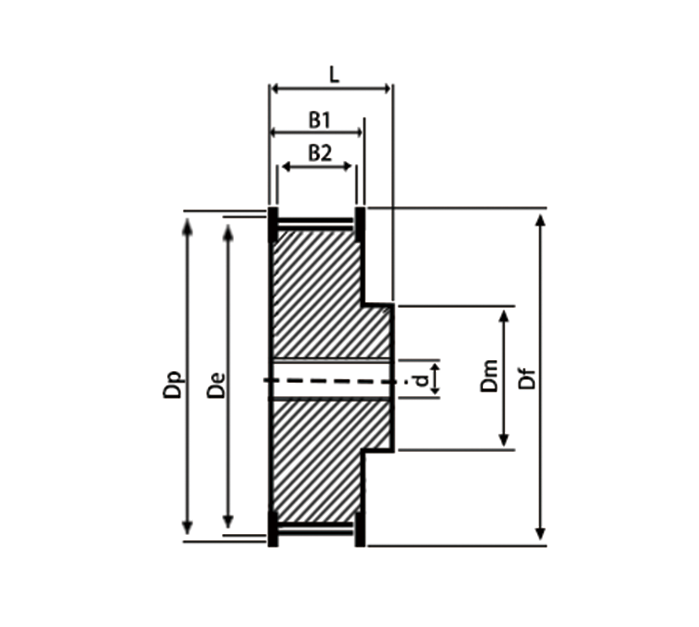

poleas
| Sin dientes | Dp | Delaware | Sin dientes | Dp | Delaware |
12 | 19.1 | 17.87 | 27 | 42.97 | 41.74 |
14 | 22.28 | 21.05 | 28 | 44.56 | 43.33 |
15 | 23.87 | 22.64 | 30 | 47.75 | 46.52 |
16 | 25.46 | 24.24 | 32 | 50.93 | 49.70 |
18 | 28.65 | 27.42 | 36 | 57.30 | 56.07 |
19 | 30.24 | 29.01 | 40 | 63.66 | 62.43 |
20 | 31.83 | 30.60 | 42 | 66.85 | 65.62 |
22 | 35.01 | 33.79 | 44 | 70.03 | 68.80 |
24 | 38.20 | 36.97 | 48 | 76.39 | 75.17 |
25 | 39.79 | 38.56 | 60 | 95.49 | 94.27 |
26 | 41.38 | 40.15 | 68 | 108.23 | 107.01 |
